Carpenter Square 600×400mm | Q235 Steel Metric & Imperial Framing Square Manufacturer Supplier

Description

Carpenter Square is a precision measuring tool designed for 90-degree layout, marking, and angle inspection in woodworking and construction applications. It offers a measuring range of 600×400mm (24×16") with dual metric and imperial scales and etched graduations, making it suitable for carpentry, metalworking, and fabrication industries. Manufactured from Q235 steel with a protective clear coating, this tool provides reliable performance for layout, alignment, and quality control tasks.

SKU Table

Technical Specifications

• Product Name: Carpenter Square / Framing Square
• Category: Angle Measuring Tool
• Range: 600×400mm (24×16")
• Accuracy: ±0.20mm
• Resolution: 1mm (metric) / 1/8" (imperial)
• Material: Q235 carbon steel
• Display: Stamped (pressed) graduations
• Output: No data output
• Structure Feature:
  • L-shaped rigid structure for 90° angle measurement

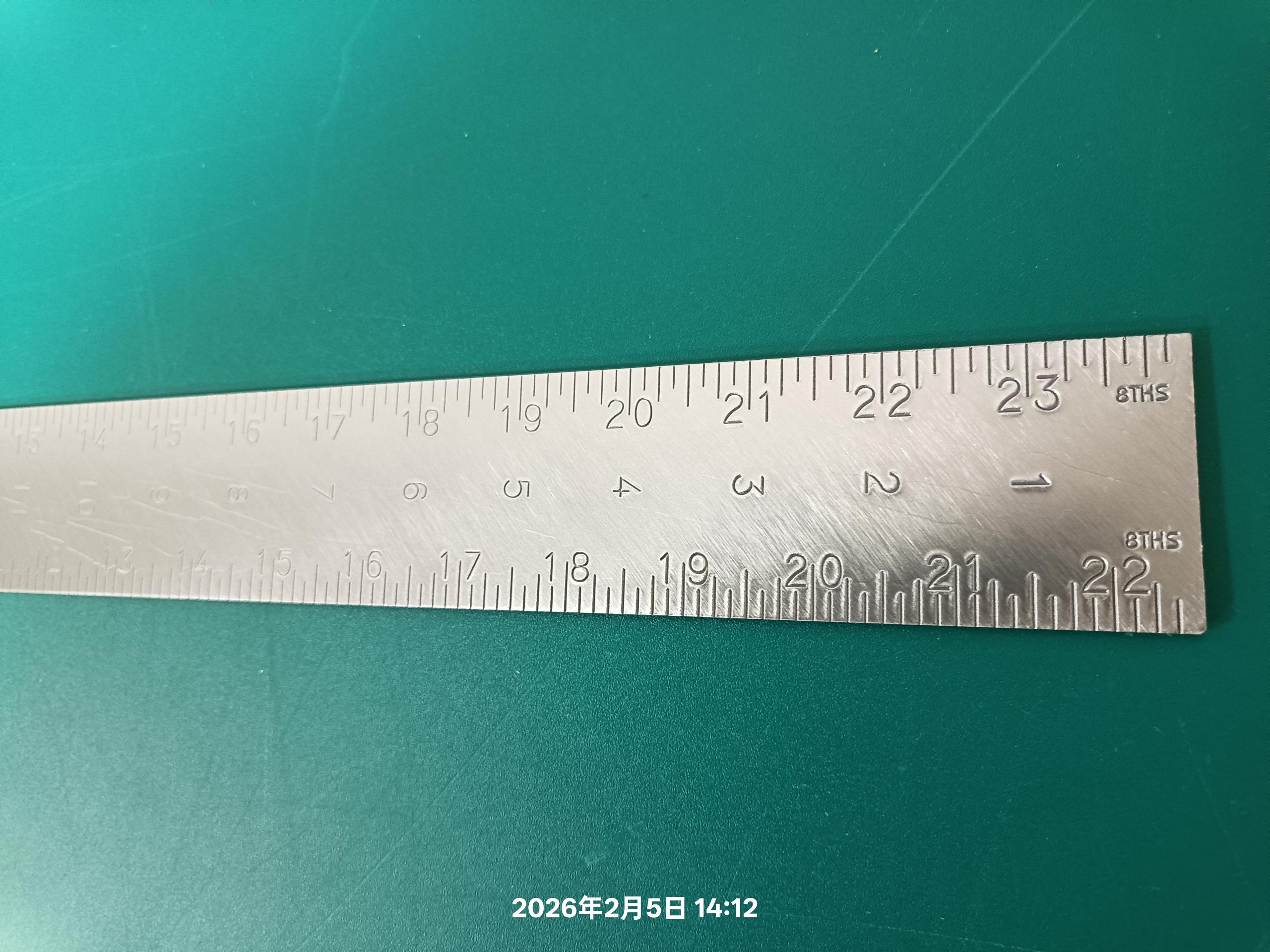

  • Dual scale: metric and imperial (8ths division)
  • One side metric, one side inch scale
  • Stamped scale markings for durability
  • Surface coated with transparent anti-rust protection
• Standard: Industry standard
• Brand: Neutral (custom marking available)
• Model / Art No: 13-6511-221

Applications

This product is suitable for:

• 90° angle layout and checking
• Woodworking measurement and marking
• Framing and construction alignment
• Metal sheet layout and fabrication

Widely used in:

• Carpentry and woodworking
• Construction and framing
• Metal fabrication workshops
• General industrial layout tasks

Selection Advice

• 600×400mm (24×16"): Standard size for general carpentry and framing work

For alternatives:

• For compact use → try squares or small engineer squares
• For adjustable angles → combination squares
• For higher precision → precision engineer squares

Key Features

• Durable Q235 steel construction for long-term use
• Dual metric and imperial scales for versatility
• Clear stamped graduations for easy reading
• Rigid L-shape design ensures accurate 90° measurement
• Anti-rust transparent coating for surface protection

FAQ

1. What is the difference between carpenter square and try square?
Carpenter squares are larger and used for layout and framing, while try squares are smaller and used for precision inspection.

2. Accuracy vs Resolution?

• Resolution: smallest scale increment (1mm / 1/8")
• Accuracy: allowable deviation from true 90° angle

3. Manual vs Digital angle tools?

• Manual: simple, durable, no power required
• Digital: provides angle readout and higher precision

4. Which industries use carpenter squares?
Construction, woodworking, metal fabrication, and general layout work.

5. Is customization available?
Yes. OEM services include:

• Custom logo stamping
• Scale marking customization
• Packaging design
• Barcode and labeling options
