Coating Thickness Gauge 0–1500µm | Fe/NFe Digital Paint Thickness Tester Manufacturer Supplier

Description

Coating Thickness Gauge is a precision measuring tool designed for non-destructive measurement of coating thickness on ferrous and non-ferrous substrates. It offers a measuring range of 0–1500µm, dual-mode Fe/NFe detection, and digital operation, making it suitable for automotive, manufacturing, and surface treatment industries. Manufactured with a compact handheld design and integrated probe, this instrument provides reliable performance for inspection, maintenance, and quality control applications.

SKU Table

Technical Specifications

• Product Name: Coating Thickness Gauge (2-in-1)
• Category: Coating Thickness Measuring Instrument
• Range: 0–1500µm
• Accuracy: ±(3% + 1µm)
• Resolution: 1µm
• Material:
  • ABS housing (black)
  • Integrated probe sensor
• Display: Digital LCD display with WERKA startup interface
• Output: Digital display (optional data output depending on version)
• Structure Feature:
  • Dual measurement mode: Fe (ferrous) / NFe (non-ferrous)
  • Integrated probe design (no external cable)
  • Compact handheld structure for field use
  • Red-button keypad with clear white labeling
  • Automatic substrate recognition
• Standard: Industry standard
• Brand: WERKA
• Model / Art No: 542-0252

Applications

This product is suitable for:

• Paint thickness measurement
• Coating inspection on metal surfaces
• Corrosion protection layer checking
• Quality control in finishing processes

Widely used in:

• Automotive inspection
• Surface coating industries
• Metal fabrication
• Quality control and maintenance

Selection Advice

This model is recommended for users who need portable coating thickness measurement up to 1500µm with dual substrate compatibility.

For alternatives:

• For higher precision → advanced coating thickness gauges
• For continuous monitoring → inline measurement systems
• For basic inspection → mechanical thickness gauges

Key Features

• Dual-mode Fe/NFe measurement for versatile applications
• Wide range 0–1500µm coating thickness detection
• Compact handheld design for field inspection

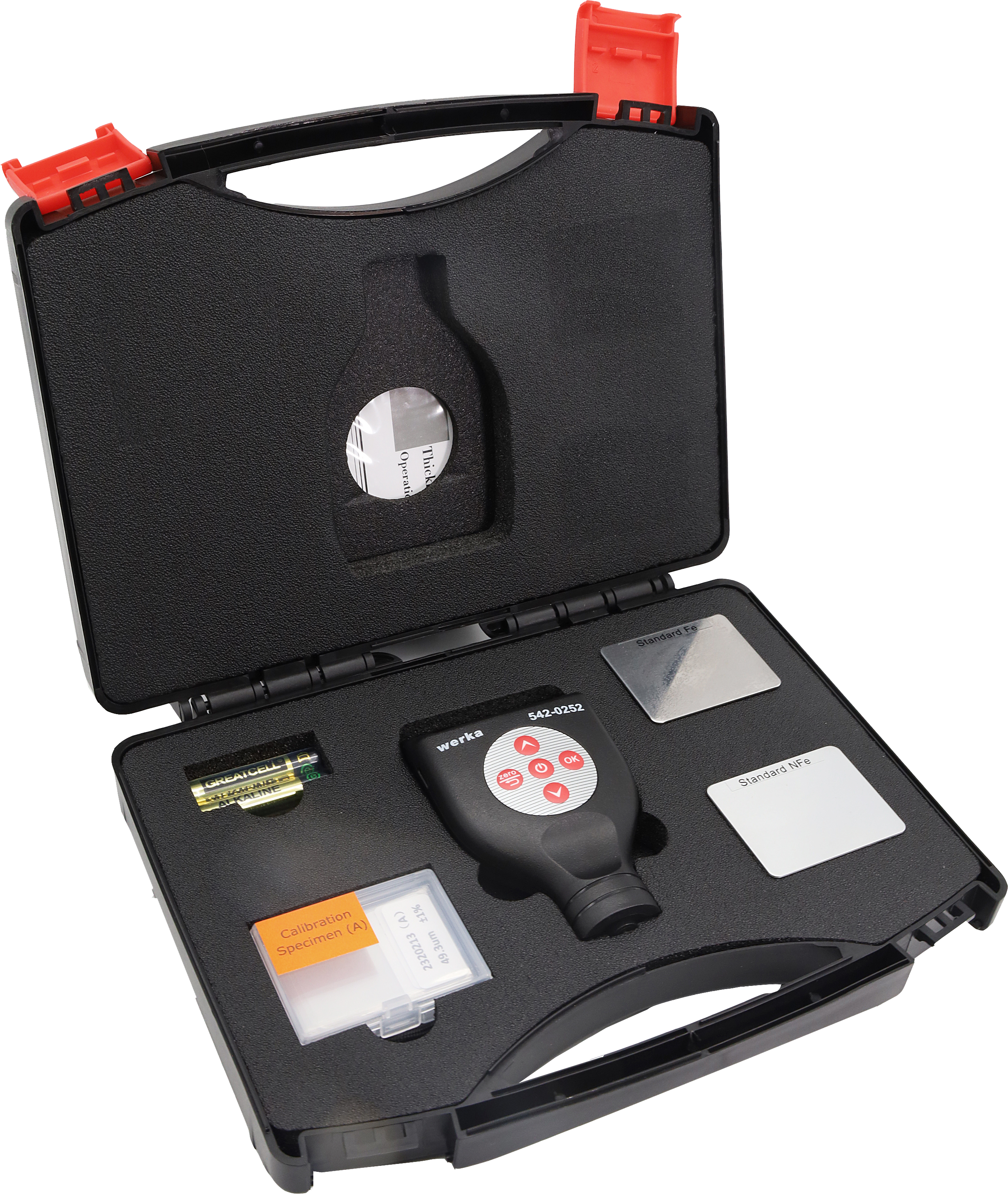

• Supplied with calibration foils and test blocks
• Customized WERKA interface and branding

FAQ

1. What is the difference between Fe and NFe modes?

• Fe: for ferrous substrates (steel, iron)
• NFe: for non-ferrous substrates (aluminum, copper)

2. What does 1µm resolution mean?
It indicates the smallest measurable thickness increment.

3. Manual vs Digital thickness gauge?

• Manual: limited use, less precise
• Digital: fast, accurate, easy to operate

4. Which industries use coating thickness gauges?
Automotive, coating, manufacturing, and inspection industries.

5. Is customization available?
Yes. OEM options include:

• Logo and interface customization
• Housing color and design
• Packaging and accessory configuration
• Firmware customization
