Digital Height Gauge 0–600mm | Data Output Electronic Height Gauge Manufacturer Supplier

Description

Digital Height Gauge is a precision measuring tool designed for vertical measurement, layout marking, and inspection on surface plates. It offers a measuring range of 0–600mm with high-resolution digital reading and integrated data output, making it suitable for machining, automotive, and precision engineering industries. Manufactured with a metal housing and rack-driven structure with fine adjustment wheel, this tool provides reliable and efficient performance for inspection, machining, and quality control applications.

SKU Table

Technical Specifications

• Product Name: Digital Height Gauge
• Category: Electronic Height Measuring Tool
• Range: 0–300mm / 0–600mm
• Accuracy: Up to ±0.03mm (300mm model)
• Resolution: 0.01mm
• Material:
  • Metal housing (durable industrial design)
  • Hardened measuring beam with rack

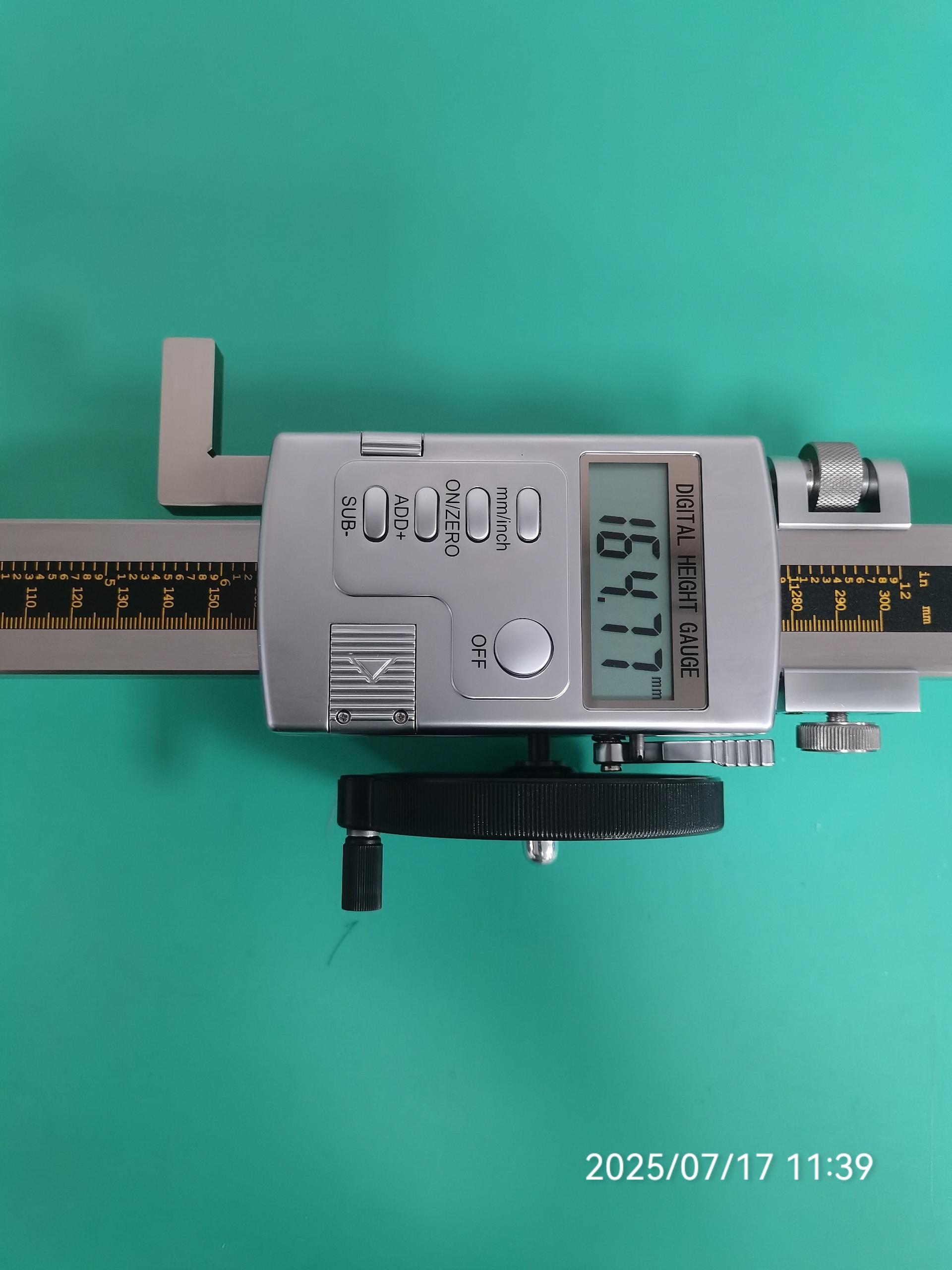

• Display: LCD digital display (black background with yellow characters)
• Output: Data output interface
• Structure Feature:
  • Fine adjustment wheel with rack drive
  • Locking lever mechanism
  • Dual unit scale (metric & inch)
  • Five metal function buttons: mm/inch, ON/ZERO, ADD+, SUB-, OFF
  • Scriber holder with carbide-tipped scriber
  • Extension rod included
  • Serial number marking on beam
  • Protective base cover (black fabric sleeve)
• Standard: Industry standard
• Brand: Neutral / BAKER marking on scale film
• Model / Art No: 10-6115 / 10-6118 series

Applications

This product is suitable for:

• Height measurement on granite surface plates
• Layout marking and scribing
• Precision inspection of machined parts
• Tool setup and calibration

Widely used in:

• CNC machining workshops
• Automotive manufacturing
• Metal fabrication
• Quality control and inspection labs

Selection Advice

• 0–300mm model: Recommended for bench inspection and small to medium components
• 0–600mm model: Suitable for larger parts and extended measurement range

For alternatives:

• For cost-sensitive applications → vernier height gauges
• For ultra-high precision → digital height gauges with probe systems
• For portable inspection → compact height gauges

Key Features

• Digital LCD display with clear contrast for fast reading
• Integrated data output for SPC and inspection systems
• Rack and wheel fine adjustment for smooth positioning
• Durable metal housing construction

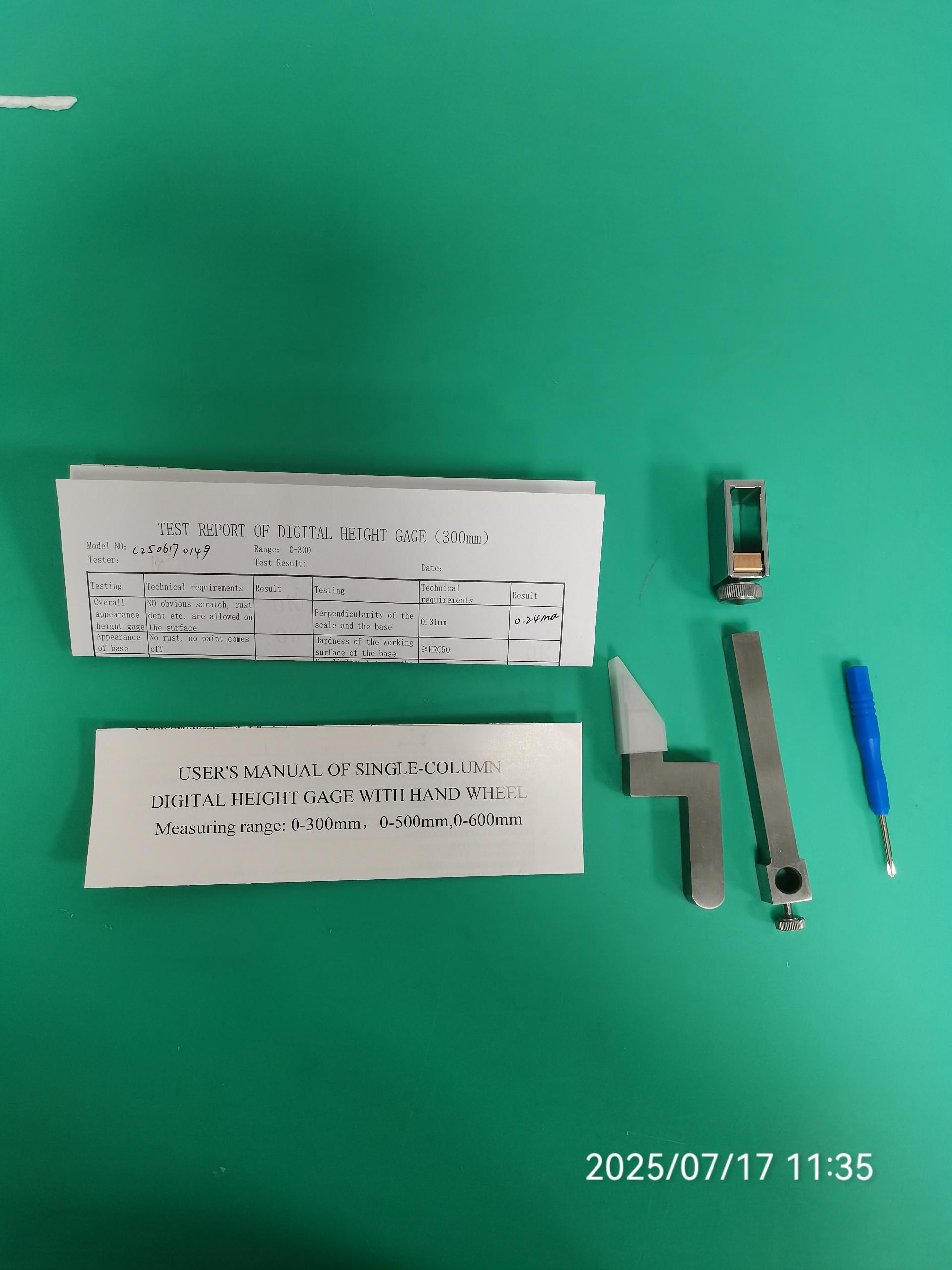

• Supplied with complete accessory set (scriber, holder, extension rod)

FAQ

1. What is the difference between models?
The difference is measuring range (300mm vs 600mm). Larger models are suitable for taller workpieces but require more workspace.

2. Accuracy vs Resolution?

• Resolution: smallest readable increment (0.01mm)
• Accuracy: allowable measurement deviation (depends on range)

3. Manual vs Digital height gauge?

• Manual: no power required, lower cost
• Digital: faster reading, no parallax error, supports data output

4. Which industries use digital height gauges?
Machining, automotive, aerospace, metalworking, and quality inspection sectors.

5. Is customization available?
Yes. OEM services include:

• Logo printing (scale film branding)
• Housing color customization
• Packaging and labeling
• Function configuration
