Outside Micrometer 0–300mm | DIN863 Mechanical Micrometer Manufacturer Supplier
Description
Outside Micrometer is a precision measuring tool designed for accurate external dimension measurement of shafts, rods, and mechanical components. It offers a measuring range from 0–25mm up to 275–300mm, high precision mechanical reading, and a durable painted frame with a metal ratchet stop, making it suitable for machining, metalworking, and industrial inspection. Manufactured according to DIN863 standard, this micrometer provides reliable performance for quality control and workshop applications.
SKU
| Model / Art No | Range | Accuracy | Resolution |
|---|---|---|---|
| 11-0121-144 | 0–25mm | Not specified | 0.01mm |
| 11-0121-244 | 25–50mm | Not specified | 0.01mm |
| 11-0121-346 | 50–75mm | Not specified | 0.01mm |
| 11-0121-446 | 75–100mm | Not specified | 0.01mm |
| 11-0121-531 | 100–125mm | Not specified | 0.01mm |
| 11-0121-630 | 125–150mm | Not specified | 0.01mm |
| 11-0121-730 | 150–175mm | Not specified | 0.01mm |
| 11-0121-829 | 175–200mm | Not specified | 0.01mm |
| 11-0121-923 | 200–225mm | Not specified | 0.01mm |
| 11-0122-023 | 225–250mm | Not specified | 0.01mm |
| 11-0122-123 | 250–275mm | Not specified | 0.01mm |
| 11-0122-223 | 275–300mm | Not specified | 0.01mm |
Technical Specifications
- Product Name: Outside Micrometer
- Category: Micrometer
- Range: 0–300mm (multiple models)
- Accuracy: Not specified
- Resolution: 0.01mm
- Material: Metal Frame with Painted Finish
- Display: Mechanical Scale
- Output: None
- Structure Feature: Arc-shaped frame, metal ratchet stop, 0.5mm spindle pitch for fast movement
- Standard: DIN863
- Brand: Neutral
- Model / Art No: 11-0121 / 11-0122 series
Applications
This product is suitable for measuring external dimensions of shafts, rods, pipes, and precision components. It is widely used in machining, metalworking, mechanical engineering, equipment maintenance, and industrial quality inspection.
Selection Advice
This micrometer series is recommended for users who need precise external measurement with 0.01mm resolution. Choose smaller range models (0–25mm, 25–50mm) for high-precision small parts, and larger range models (100–300mm) for bigger components and extended measuring applications. For faster measurement and data recording, consider digital micrometers.
Key Features
- Manufactured according to DIN863 standard for reliable accuracy
- Arc-shaped frame for improved rigidity and ergonomic handling
- Metal ratchet stop ensures consistent measuring force
- 0.5mm spindle pitch for quick and smooth measurement adjustment

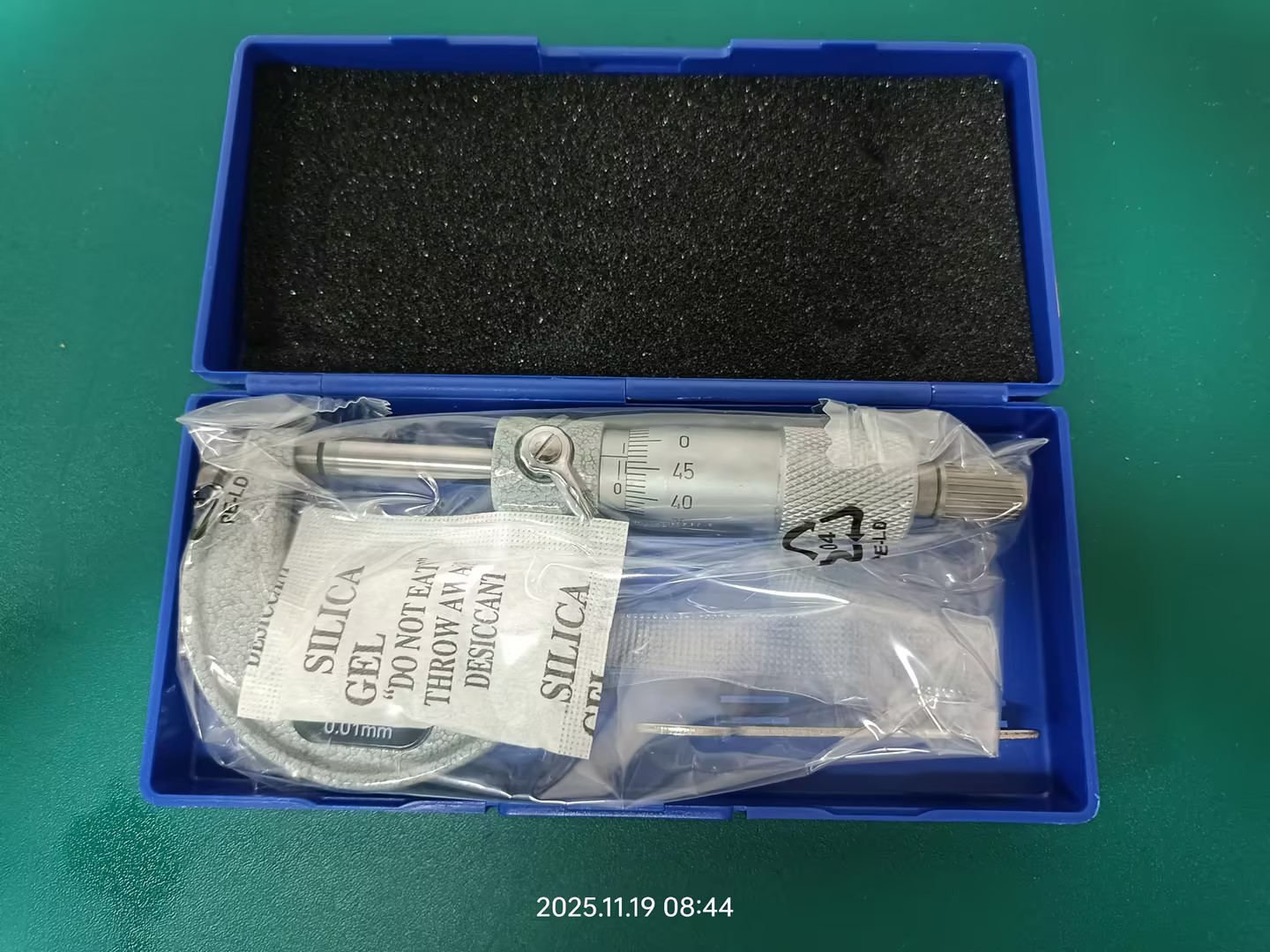

- Durable painted surface with protective plastic case packaging
FAQ
What is the difference between the various measuring ranges?
Each model covers a different measurement range, from 0–25mm up to 275–300mm. Users should select the range based on the size of the workpiece to ensure optimal accuracy.
What is the difference between accuracy and resolution?
Resolution refers to the smallest increment that can be read, which is 0.01mm for this micrometer. Accuracy refers to how close the measurement is to the true value, which depends on calibration and manufacturing standards.
Is this a manual or digital micrometer?
This is a manual mechanical micrometer with a traditional scale and ratchet stop, offering stable and reliable measurement without electronic components.
What industries commonly use this product?
It is widely used in machining, metal fabrication, mechanical engineering, maintenance, and industrial inspection environments.
Is customization available?
This product is available in neutral branding. OEM, private labeling, and customized packaging options may be available depending on order quantity and requirements.
