Precision toolmarkers vise
30-03-001
Product Details
Title
Precision Machine Vice 50–100mm | 0.005mm Accuracy Milling Vice Manufacturer Supplier
Description
Precision Machine Vice is a high-accuracy clamping tool designed for secure positioning of workpieces during machining and inspection. It offers a maximum opening range up to 100mm, accuracy of 0.005mm/100mm, and stable clamping performance, making it suitable for CNC machining, milling, and precision inspection applications. Manufactured from high-strength steel, this vice provides reliable rigidity and alignment for demanding industrial environments.
SKU Table
| Model / Art No | Jaw Size (W×Opening×H×L) | Max Opening | Accuracy | Resolution |
|---|---|---|---|---|
| 31-3111-332 | 50×60×25×155mm | 60mm | 0.005mm/100mm | N/A |
| 31-3111-343 | 73×100×35×190mm | 100mm | 0.005mm/100mm | N/A |
| 31-3133-310 | 73×100×35×210mm | 100mm | 0.005mm/100mm | N/A |
Technical Specifications
- Product Name: Precision Machine Vice
- Category: Workholding & Fixturing Tool
- Range: Max opening up to 100mm
- Accuracy: 0.005mm/100mm
- Verticality: 0.01mm/100mm
- Resolution: Not applicable
- Material: High-strength steel
- Display: None
- Output: None
- Structure Feature:
- Precision ground clamping surfaces
- Parallel and vertical alignment control
- Rigid body construction for stability
- Smooth screw mechanism for controlled clamping
- Compact and heavy-duty design
- Standard: Industry standard
- Brand: Neutral
- Model / Art No: 31-3111 / 31-3133 series
Applications
This product is suitable for:
- CNC milling and machining operations
- Workpiece clamping and positioning
- Precision grinding setups
- Inspection and measurement support
Widely used in:
- CNC machining centers
- Tool and die manufacturing
- Precision engineering workshops
- Quality control departments
Selection Advice

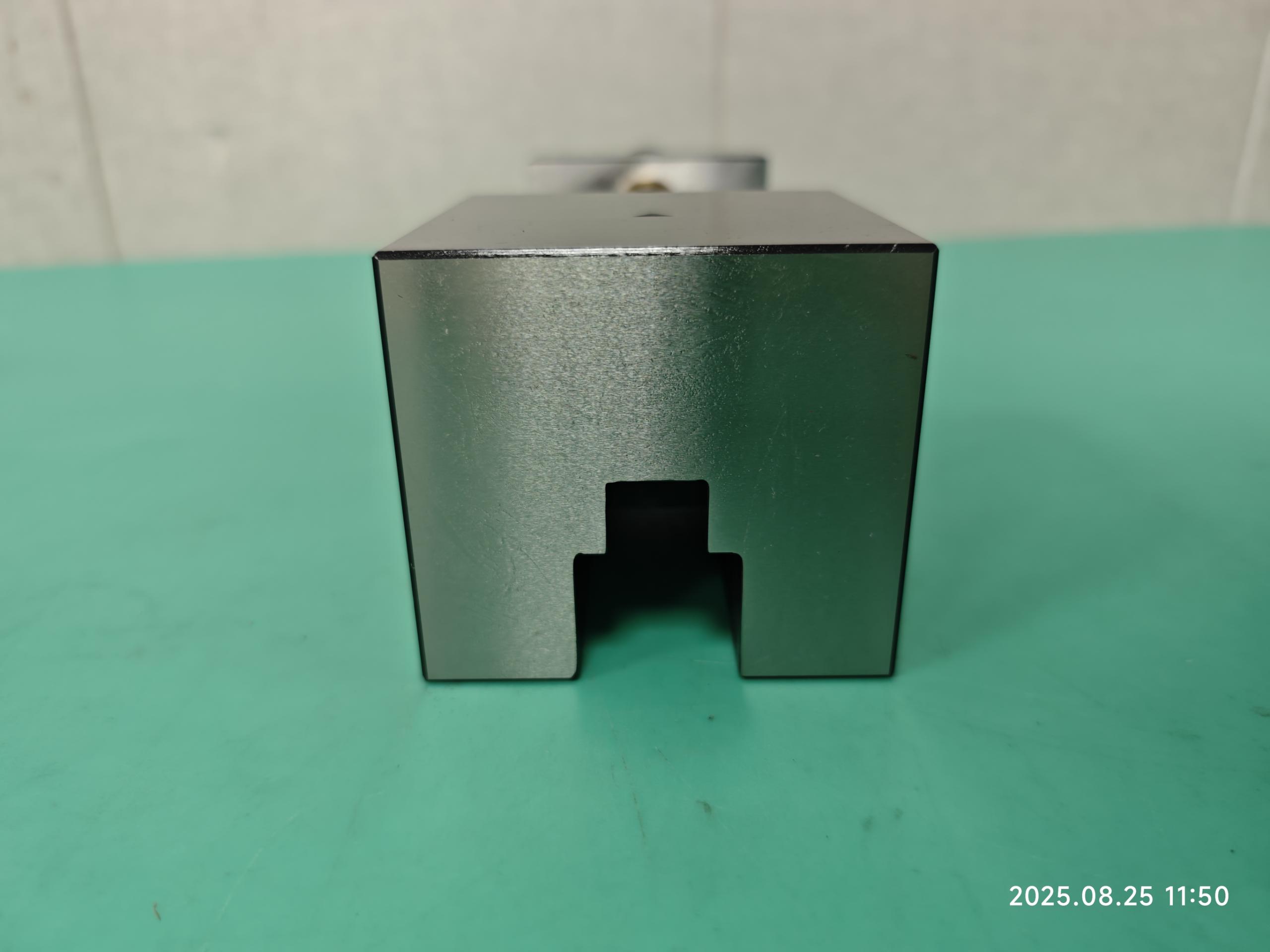

- 50mm model: Ideal for small components and compact setups
- 73mm models (190mm / 210mm length): Suitable for general machining applications

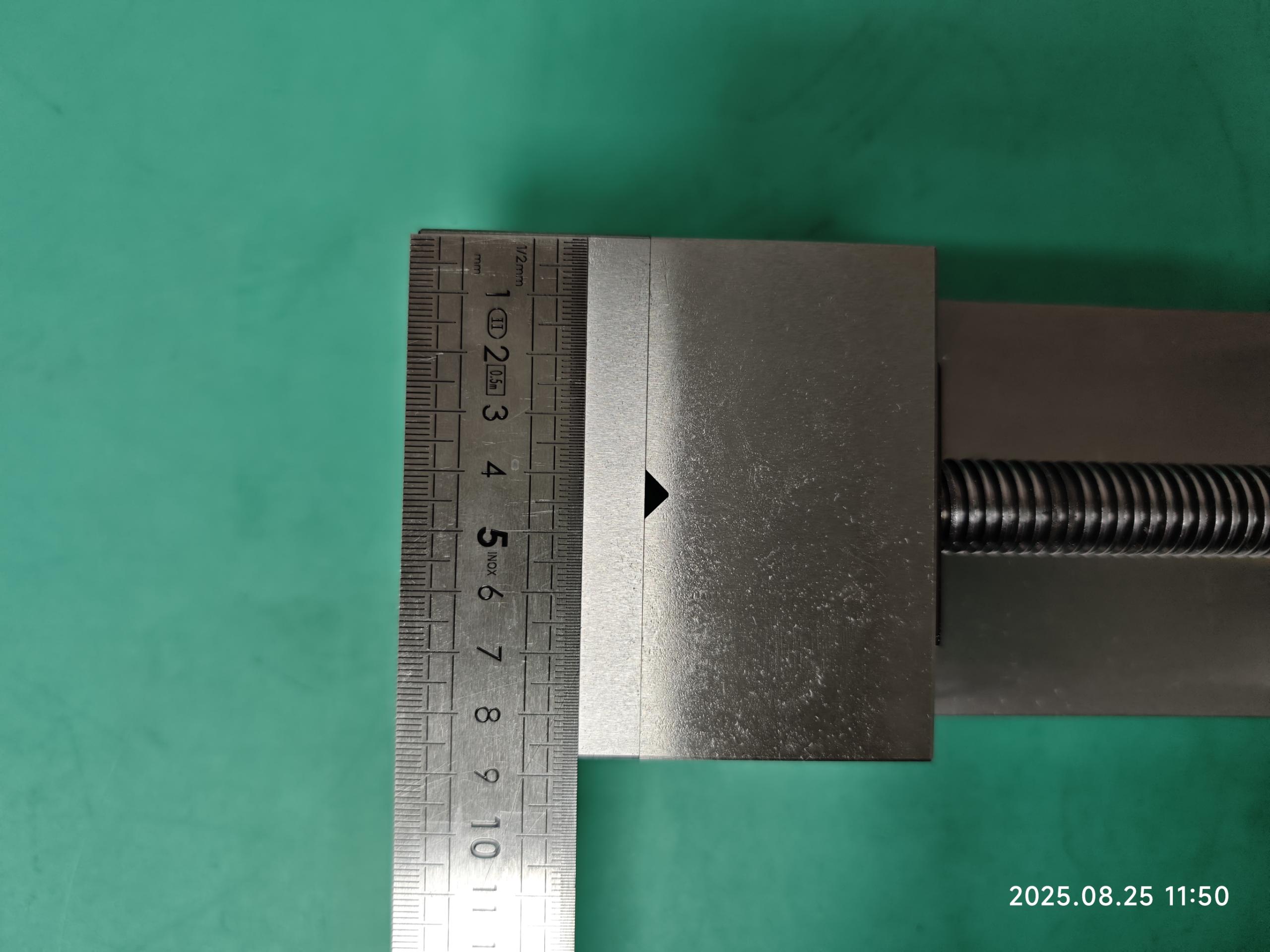

- 210mm body version: Recommended for enhanced stability and larger workpieces
For alternatives:
- For modular setup → parallel block sets
- For cylindrical parts → V blocks
- For measurement → digital calipers
Key Features
- High precision 0.005mm/100mm accuracy
- Strong clamping with rigid steel construction
- Controlled verticality 0.01mm/100mm
- Smooth operation with precision screw mechanism
- Multiple sizes for different machining requirements
FAQ
1. What is the difference between models?
Models differ in jaw width, opening capacity, and body length, affecting clamping capacity and stability.
2. What does 0.005mm/100mm accuracy mean?
It indicates the parallelism tolerance of the clamping surfaces over 100mm length.
3. Is this a measuring tool or a fixture?
It is a workholding fixture used in machining, not a measuring instrument.
4. Which industries use precision vices?
Machining, tooling, mold making, and inspection industries.
5. Is customization available?
Yes. OEM options include:
- Jaw customization
- Surface treatment
- Logo engraving
- Packaging and labeling adjustments
