Vernier depth gauge
10-02-039
Product Details
Stainless Steel Vernier Depth Gauge 0–150/200/300mm | 0.02mm Resolution Precision Measuring Tool Manufacturer Supplier
Description
Stainless Steel Vernier Depth Gauge is a precision measuring tool designed for measuring the depth of slots, holes, grooves, and recesses. It offers a measuring range of 0–150mm, 0–200mm, and 0–300mm, 0.02mm resolution, and a hardened stainless steel measuring surface, making it suitable for machining, metalworking, mold manufacturing, and industrial quality control. Manufactured from stainless steel with a chrome-plated surface, this tool provides reliable performance for inspection, workshop measurement, and production-line applications.
SKU
| Model / Art No | Range | Accuracy | Resolution |
|---|---|---|---|
| 2106-151 | 0–150mm | 0.03mm | 0.02mm |
| 2106-201 | 0–200mm | 0.03mm | 0.02mm |
| 2106-301 | 0–300mm | 0.04mm | 0.02mm |
Technical Specifications
- Product Name: Stainless Steel Vernier Depth Gauge
- Category: Depth Gauge
- Range: 0–150mm / 0–200mm / 0–300mm
- Accuracy: 0.03mm / 0.03mm / 0.04mm
- Resolution: 0.02mm
- Material: Stainless Steel
- Display: Vernier Scale
- Output: None

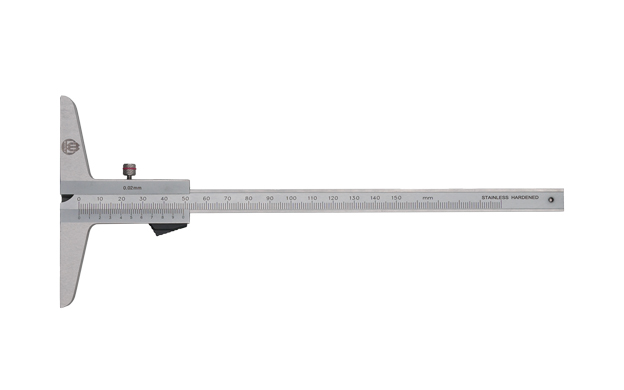

- Structure Feature: One-piece vernier frame, 100mm base, hardened measuring faces, chrome-plated surface, black plastic thumb grip
- Standard: Metric Only
- Brand: Werka
- Model / Art No: 2106-151 / 2106-201 / 2106-301
Applications

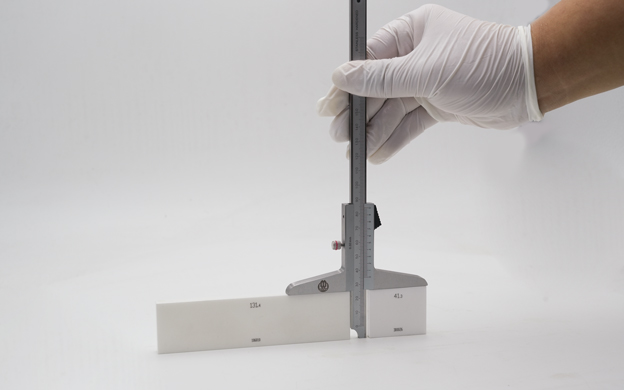

This product is suitable for measuring groove depth, hole depth, slot depth, and step depth. It is widely used in machining workshops, metal fabrication, mold manufacturing, maintenance inspection, and industrial quality control.
Selection Advice
This series is recommended for users who need 0.02mm resolution and reliable manual depth measurement for workshop and inspection use. Choose model 2106-151 for smaller parts and shorter measuring depth, model 2106-201 for general-purpose applications, and model 2106-301 for deeper cavities or larger workpieces. For digital reading and higher efficiency, see related digital depth gauge models.
Key Features
- Stainless steel construction for durability and long service life
- Hardened measuring faces for improved wear resistance
- Chrome-plated surface for corrosion resistance and clear reading
- 100mm base for stable positioning during depth measurement
- Black plastic thumb grip for smooth manual operation
FAQ
What is the difference between the 150mm, 200mm, and 300mm models?
The main difference is the measuring range. Model 2106-151 measures up to 150mm, 2106-201 up to 200mm, and 2106-301 up to 300mm. The 300mm model also has a slightly larger accuracy error of 0.04mm.
What is the difference between accuracy and resolution?
Resolution is the smallest increment the vernier scale can read, which is 0.02mm for all models. Accuracy refers to the allowable measurement error, which is 0.03mm for the 150mm and 200mm models and 0.04mm for the 300mm model.
Is this a manual or digital depth gauge?
This is a manual vernier depth gauge. It uses a vernier scale for reading and does not include a digital display or data output.
What industries is this depth gauge used in?
It is commonly used in machining, metalworking, mold making, equipment maintenance, and industrial inspection where accurate depth measurement is required.
Is customization available?

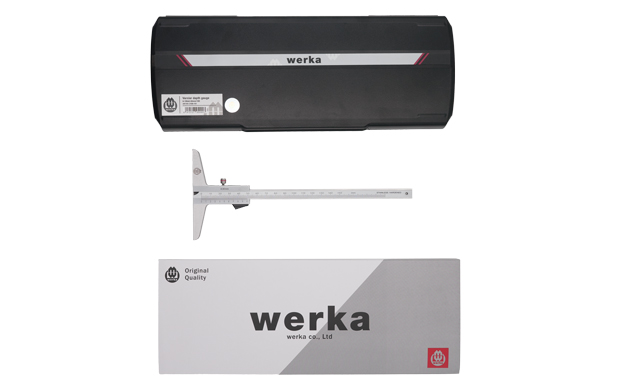

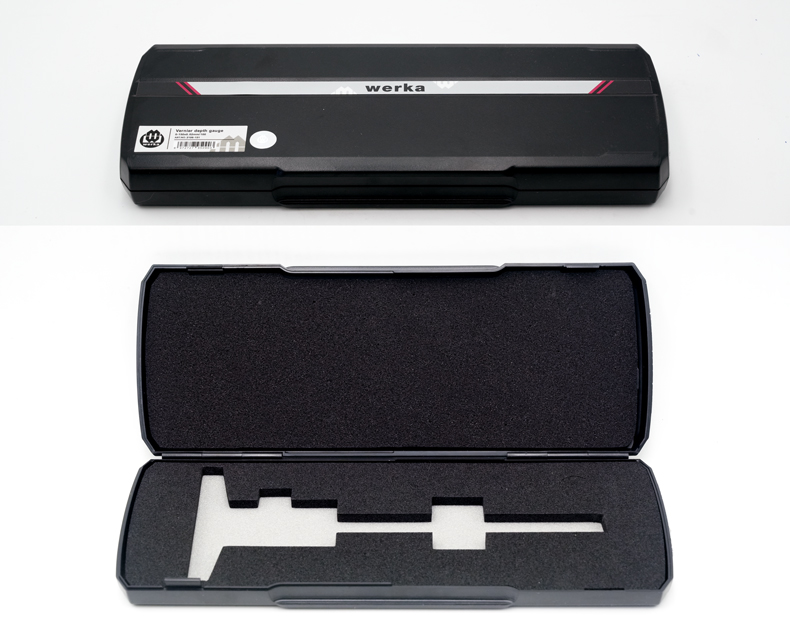

The product is supplied under the Werka brand with specified markings, packaging, and model numbers. For OEM, private label, or customized packaging requirements, please contact the supplier for confirmation.
