Vee block pair
30-01-001
Product Details
Title
Carbon Steel V Block Pair 75–250mm | 0.004mm Grade 00 Precision V Blocks Manufacturer Supplier
Description

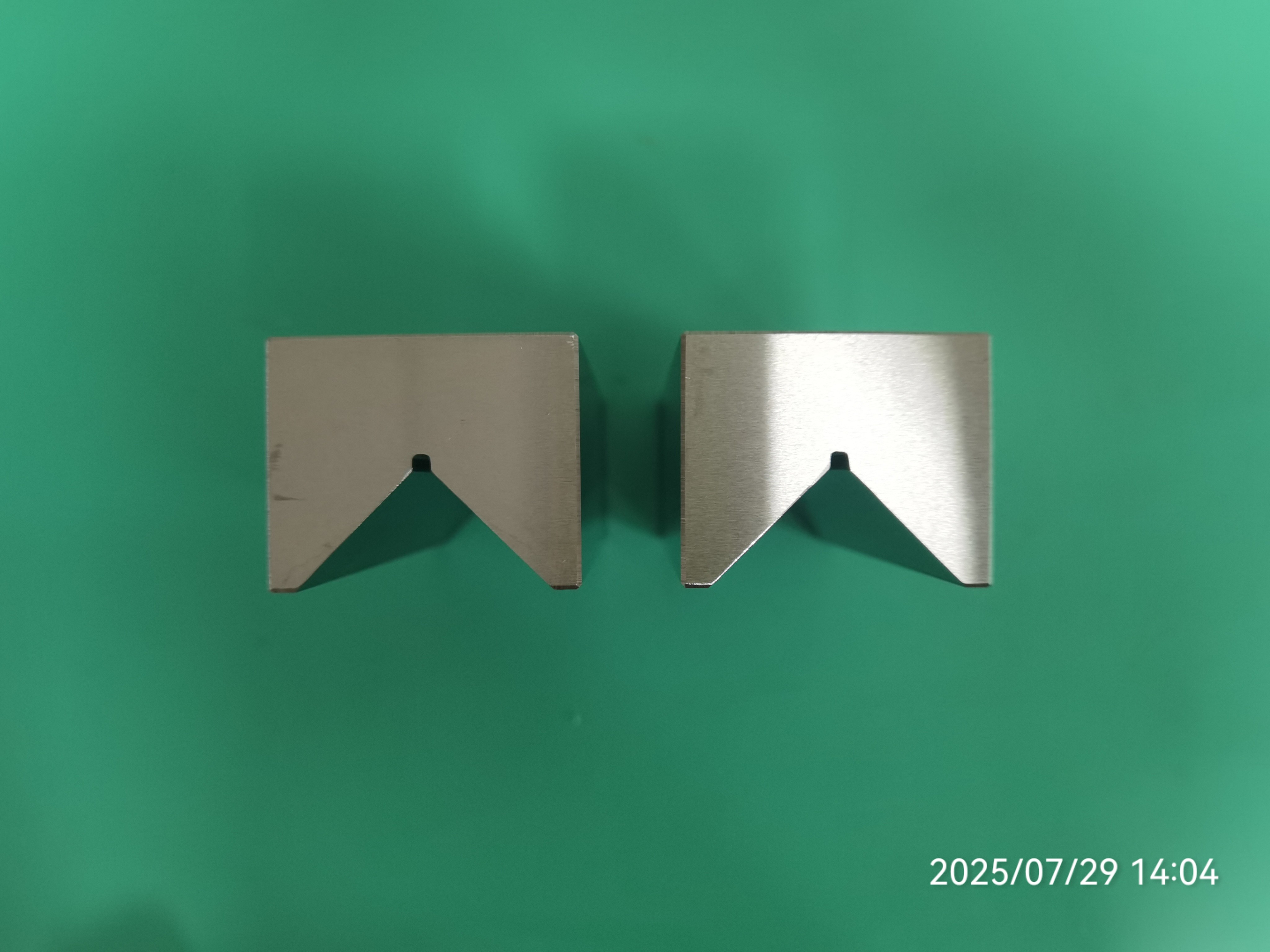

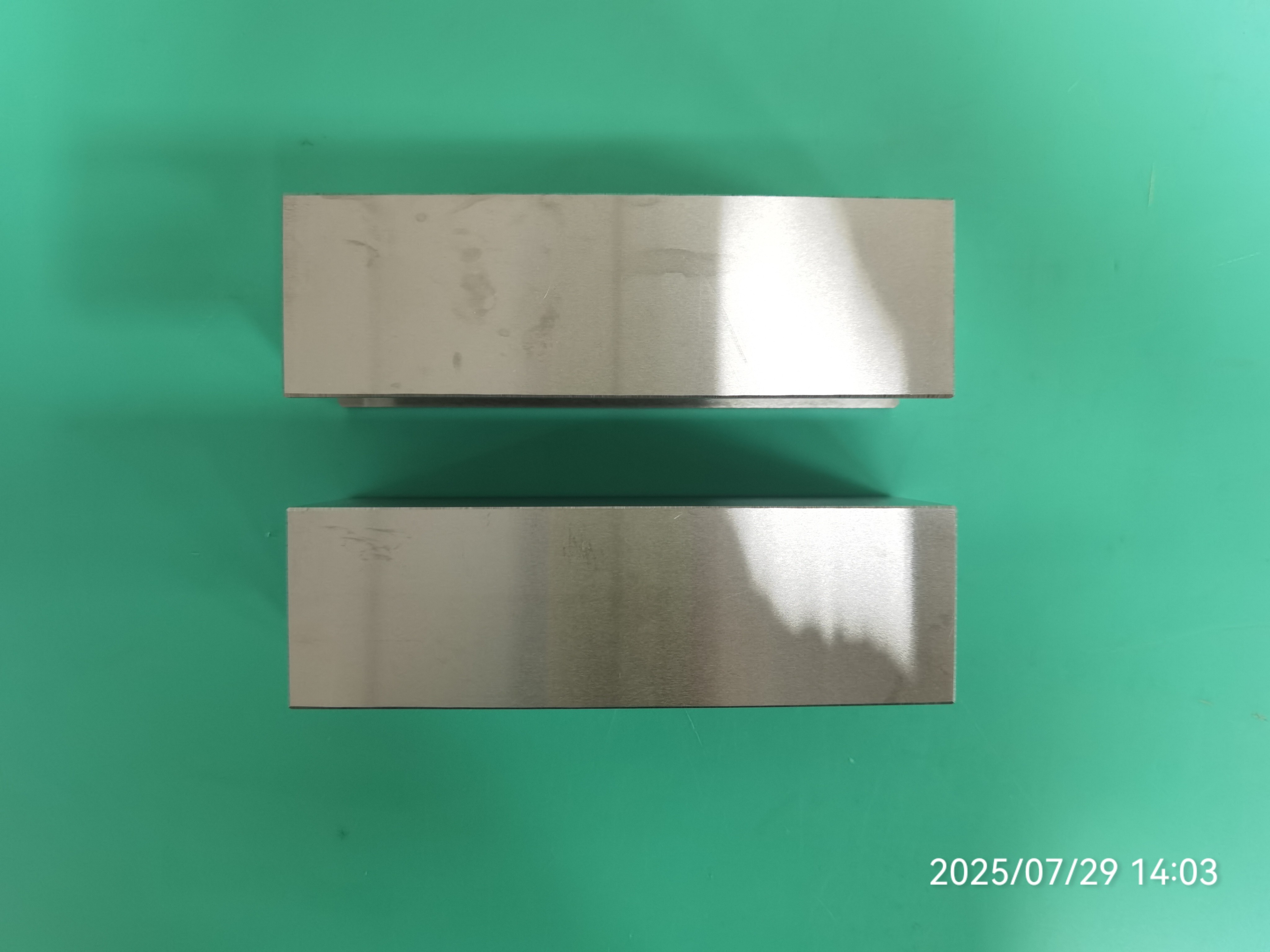

Carbon Steel V Block Pair is a precision fixturing tool designed for positioning and inspection of cylindrical workpieces. It offers a size range of 75–250mm, accuracy up to 0.004mm, and a single V-groove Grade 00 configuration, making it suitable for machining, metrology, and quality inspection applications. Manufactured from high-quality carbon steel, this tool provides stable support and reliable alignment performance in workshop and inspection environments.
SKU Table
| Model / Art No | Size (L×W×H) | Accuracy | Resolution |
|---|---|---|---|
| 12-2110-470 | 75×35×30mm | 0.004mm | N/A |
| 12-2110-140 | 100×47×40mm | 0.004mm | N/A |
| 12-2110-280 | 150×55×45mm | 0.004mm | N/A |
| 12-2110-370 | 200×65×55mm | 0.004mm | N/A |
| 12-2110-420 | 250×85×70mm | 0.004mm | N/A |
Technical Specifications
- Product Name: Carbon Steel V Block Pair (Single V)
- Category: Precision Fixturing & Inspection Tool
- Range: 75mm – 250mm
- Accuracy: 0.004mm (Grade 00)
- Resolution: Not applicable
- Material: Carbon steel
- Display: None
- Output: None
- Structure Feature:
- Single V-groove design for cylindrical positioning
- Supplied in matched pairs
- Precision ground surfaces
- Strict surface quality: no pits, burrs, cracks, or defects
- High stability for measurement and machining setup
- Standard: Industry standard (Grade 00)
- Brand: Neutral
- Model / Art No: 12-2110 series
Applications
This product is suitable for:
- Positioning cylindrical workpieces
- Inspection and measurement setups
- Machining alignment and support
- Grinding and precision layout work
Widely used in:
- CNC machining workshops
- Metrology laboratories
- Tool and die manufacturing
- Quality control departments
Selection Advice
- 75–100mm models: Ideal for small parts and precision inspection
- 150–200mm models: Suitable for medium-sized shafts and components
- 250mm model: Recommended for larger workpieces requiring stable support
For alternatives:
- For magnetic holding → magnetic V blocks
- For adjustable positioning → V block with clamp
- For quick measurement → digital calipers
Key Features
- Grade 00 accuracy (0.004mm) for high-precision applications
- Made of high-quality carbon steel with ground surfaces
- Supplied as matched pair for balanced support
- Strict surface quality control with no visible defects
- Suitable for inspection, machining, and alignment tasks
FAQ
1. What is the difference between models?
The models differ in size (75mm to 250mm), which determines the workpiece diameter they can support.
2. What does Grade 00 accuracy mean?
Grade 00 represents high-precision tolerance suitable for inspection and metrology applications.
3. Why is there no resolution specified?
V blocks are positioning tools, not measuring instruments, so resolution does not apply.
4. Which industries use V blocks?
Machining, metrology, tooling, and quality inspection industries.
5. Is customization available?
Yes. OEM options include:
- Material upgrades (alloy steel)
- Surface treatment (blackened, hardened)
- Logo marking
- Custom packaging and labeling
