Title

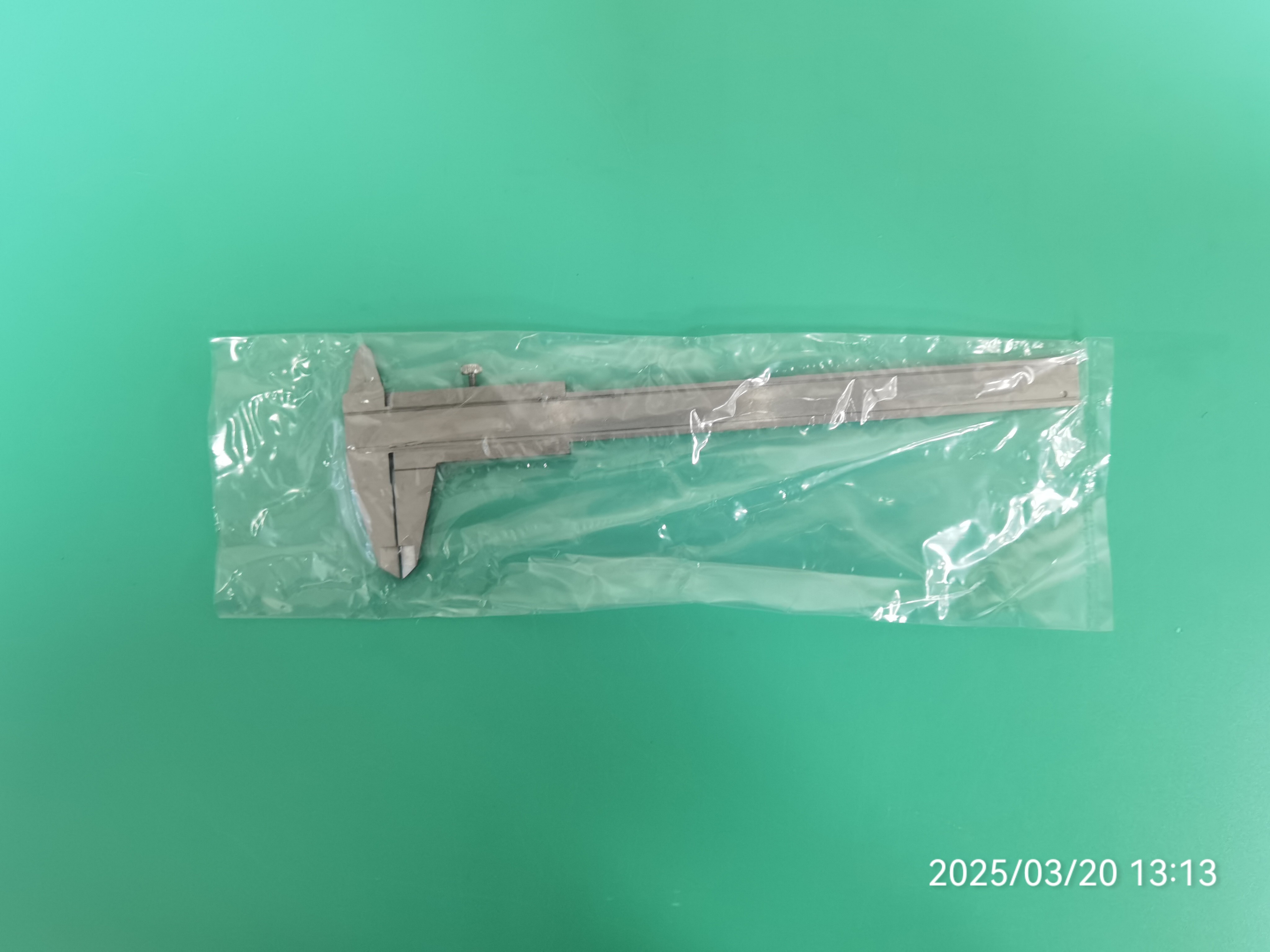

Vernier Caliper Body 0–300mm | Stainless Steel OEM Caliper Frame Manufacturer Supplier
Description
Vernier Caliper Body is a precision-machined base component designed for assembling digital calipers. It offers a measuring range of 0–300mm, industry-standard compatibility, and OEM structural accuracy, making it suitable for caliper manufacturers, assembly plants, and metrology equipment suppliers. Manufactured from stainless steel, this caliper frame provides stable performance for precision assembly, inspection, and quality control applications.
SKU Table
| Model / Art No | Range | Accuracy | Resolution |
|---|---|---|---|
| 10-9110-321 | 0–150mm | N/A (depends on assembly) | N/A |
| 10-9110-421 | 0–200mm | N/A (depends on assembly) | N/A |
| 10-9110-521 | 0–300mm | N/A (depends on assembly) | N/A |
Technical Specifications
- Product Name: Vernier Caliper Body (Blank)
- Category: Caliper Component / Measuring Tool Parts
- Range: 0–150mm / 0–200mm / 0–300mm
- Accuracy: Depends on final assembly (electronic module and calibration)
- Resolution: Depends on digital unit installed
- Material: Stainless steel
- Display: Not included
- Output: Not included
- Structure Feature:
- Precision-ground beam and jaws
- Compatible with Sylvac-type digital modules
- Manufactured according to BAKER customer drawings
- Smooth sliding surface for stable assembly
- Locking screw provision
- Standard: Industry standard
- Brand: Neutral / OEM
- Model / Art No: 10-9110 series
Applications
This product is suitable for:
- Digital caliper assembly
- OEM caliper manufacturing
- Replacement of caliper frames
- Precision instrument production
Widely used in:
- Measuring tool factories
- OEM/ODM production lines
- Industrial metrology equipment suppliers
- Quality inspection tool manufacturing
Selection Advice
- 0–150mm model: Suitable for standard compact digital calipers
- 0–200mm model: Recommended for extended measurement applications
- 0–300mm model: Ideal for long-range industrial calipers
For alternatives:
- For complete tools → finished digital calipers
- For higher precision → micrometers
- For manual measurement → vernier calipers
Key Features
- Stainless steel precision-machined caliper body
- Designed for OEM assembly (Sylvac-compatible)
- Industry-standard structure for easy integration
- Smooth sliding surfaces for stable measurement performance
- Custom production based on BAKER drawings
FAQ
1. What is the difference between models?
The difference lies in measuring range: 150mm, 200mm, and 300mm versions for different applications.
2. Does this product include electronics or display?
No. This is a caliper body only. Display and electronics must be assembled separately.
3. How are accuracy and resolution defined?
They depend on the digital module and calibration after assembly.
4. Which industries use this product?
Primarily measuring tool manufacturers, OEM factories, and metrology equipment suppliers.
5. Is customization available?
Yes. OEM customization includes:
- Logo engraving
- Scale marking customization
- Structural modifications
- Packaging solutions
