Vernier Height Gauge 0–1000mm | 0.02mm Accuracy Stainless Steel Height Gauge Manufacturer Supplier
Description
Vernier Height Gauge is a precision measuring tool designed for vertical measurement, marking, and layout operations on surface plates. It offers a measuring range of 0–1000mm with 0.02mm accuracy and a fine-adjustment mechanism with magnifier reading, making it suitable for machining, tooling, inspection, and metalworking industries. Manufactured from hardened stainless steel, this tool provides reliable performance for inspection, layout marking, and quality control applications.
SKU Table
| Model / Art No | Range | Accuracy | Resolution |
|---|---|---|---|
| 10-6215-533 | 0–300mm | ±0.02mm | 0.02mm |
| 10-6218-535 | 0–600mm | ±0.02mm | 0.02mm |
| 10-6219-543 | 0–1000mm | ±0.02mm | 0.02mm |
Technical Specifications
- Product Name: Vernier Height Gauge
- Category: Mechanical Height Measuring Tool
- Range: 0–300mm / 0–600mm / 0–1000mm
- Accuracy: ±0.02mm
- Resolution: 0.02mm
- Material: Hardened stainless steel

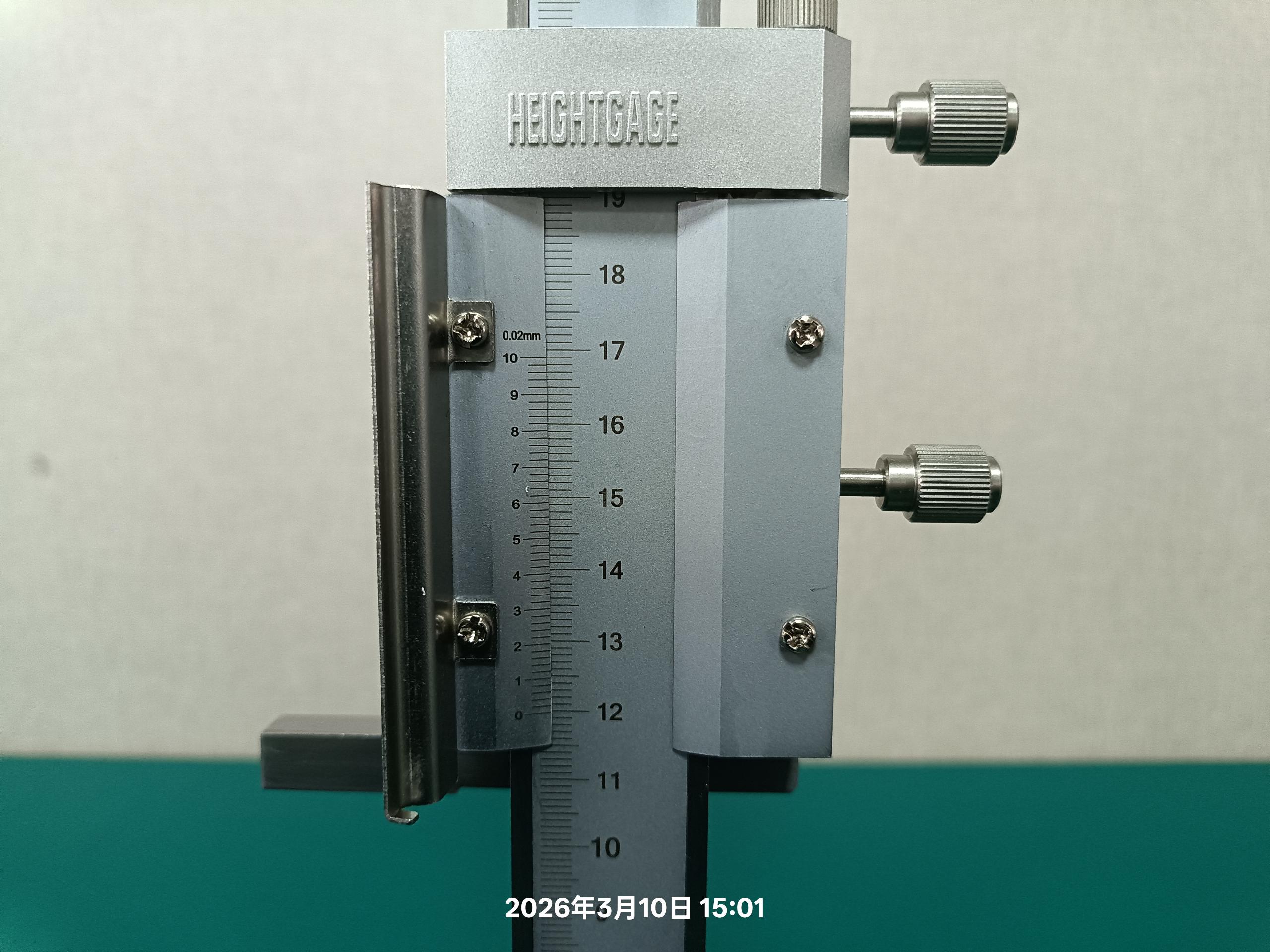

- Display: Vernier scale with magnifier
- Output: No data output (manual type)
- Structure Feature:
- Fine adjustment mechanism
- Adjustable zero setting
- Metric scale with centimeter marking
- Integrated magnifying lens for reading
- Carbide-tipped scriber
- Stable base for surface plate use
- Marking “STAINLESS HARDENED” on head
- Serial number on fine adjustment frame
- Standard: DIN862
- Brand: Neutral (OEM available)
- Model / Art No: 10-6215 / 10-6218 / 10-6219 series
Applications
This product is suitable for:
- Height measurement on surface plates
- Layout marking and scribing
- Precision inspection of workpieces
- Tool setup and calibration
Widely used in:
- Machining workshops
- Metal fabrication
- Mold and die manufacturing
- Quality control laboratories
Selection Advice
- 0–300mm: Ideal for small components and bench inspection
- 0–600mm: Suitable for medium-sized parts and general workshop use
- 0–1000mm: Designed for large workpieces and extended measurement range
For alternatives:
- For faster reading and higher efficiency → digital height gauges
- For ultra-high precision → height gauges with dial or digital indicators
- For compact environments → mini height gauges
Key Features
- Hardened stainless steel construction for durability
- 0.02mm accuracy for reliable industrial measurement
- Integrated magnifier for improved reading clarity
- Fine adjustment system for precise positioning

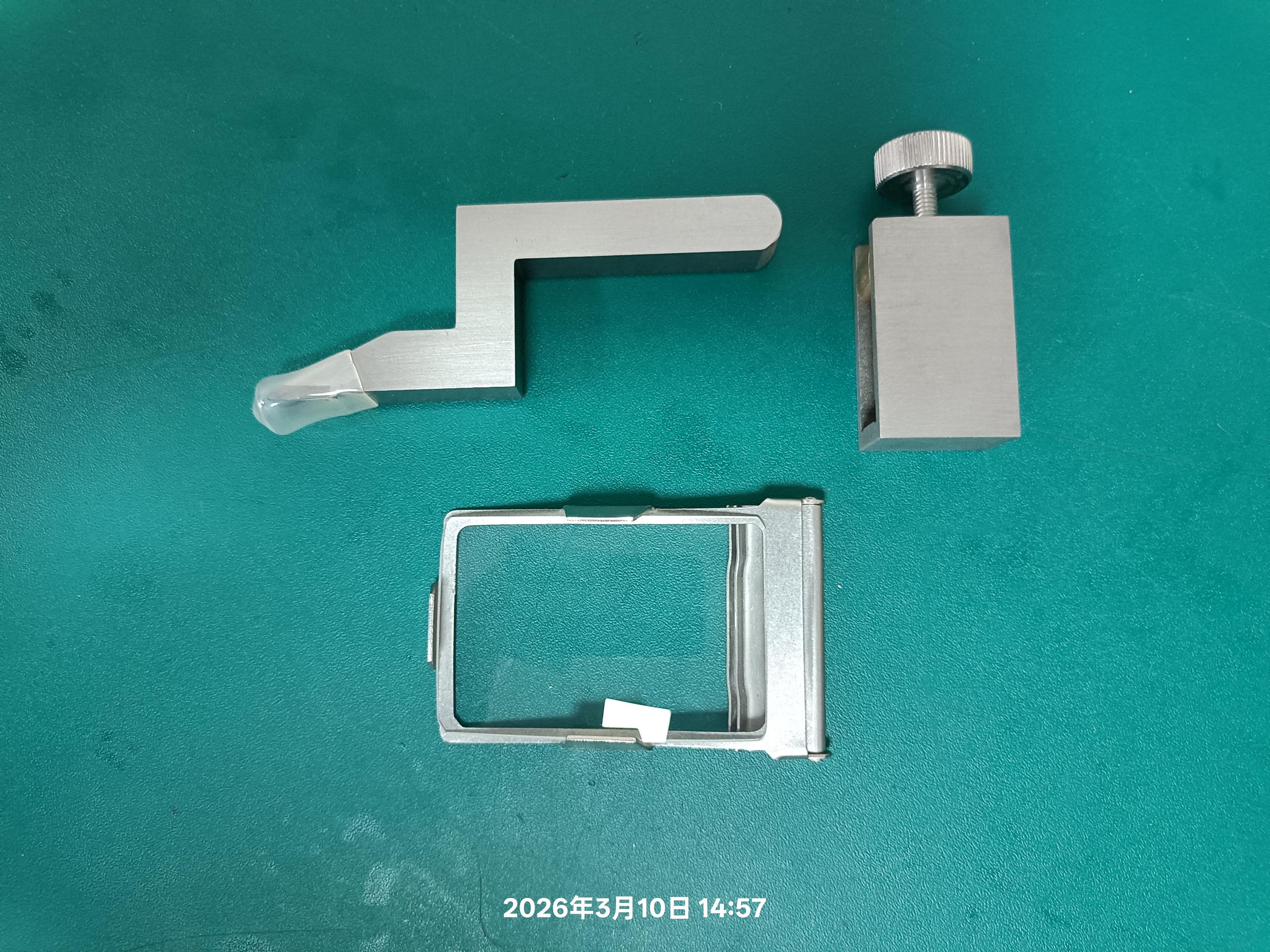

- Supplied with carbide scriber and accessories
FAQ
1. What is the difference between models?
The difference lies in measuring range (300mm, 600mm, 1000mm). Larger models are suited for taller workpieces but require more workspace.
2. Accuracy vs Resolution?
- Resolution: smallest readable increment (0.02mm)
- Accuracy: allowable measurement deviation (±0.02mm)
3. Manual vs Digital height gauge?
- Manual (vernier): robust, no battery, cost-effective
- Digital: easier reading, faster operation, data output
4. Which industries use height gauges?
Machining, metalworking, mold manufacturing, and quality inspection.
5. Is customization available?
Yes. OEM options include:
- Logo marking
- Scale customization
- Packaging design
- Labeling and barcode
